Ford F150 Lug Pattern Guide – Fitment Specs
The ford f150 lug pattern is the layout of bolt holes on the wheel hub of your truck. It’s
key for the right fitment of wheels, impacting your vehicle’s performance and safety.
Figuring out the ford f150 wheel lug pattern ensures you pick suitable wheels, preventing issues like misalignment and shakes.
We’ll explore the different lug patterns for various years, how to measure your lug pattern accurately, and choosing wheels for your F150.
It’s important to know your lug pattern for wise decisions on wheel changes or upgrades. This insight lets you pick wheels that look good and fit right.
Whether you’re a DIY fan or just starting, you will find helpful hints and easy directions here.
What is The Importance of Lug Patterns?
Knowing a lug pattern is key for your Ford F150’s care. It affects how wheels fit and keeps you safe. The size and shape of lug patterns vary, making it important for matching.
What is A Lug Pattern?
A lug pattern refers to the layout of nuts that fix the wheel to your truck. For a Ford F150, this usually means a set number in a circle, measured in millimeters.
typical pattern might be 6-135 mm. This means six lugs in a 135 mm circle. It’s vital to know this to get the correct wheels.
Why Accurate Measurements Matter
Getting the lug pattern right is crucial. Wrong patterns can lead to wheel issues, tire damage, or worse, handling troubles. Accurate lug measurements help keep your wheels firmly in place.
This ensures your truck drives smoothly and safely. Use precise tools to measure your Ford F150’s lug pattern to avoid errors.
Ford F150 Lug Pattern: Common Specifications
It’s key to know the ford f150 lug setup when picking wheels for your truck. The specs change a lot between different model years.
This affects your options for wheel upgrades or replacements. Below, we list the usual specs by model year.
We highlight the main differences between the Ford F150’s two big production periods.
Standard Lug Sizes For Different Model Years
Most Ford F150s made after 2004 have a 6x135mm bolt pattern. But, models from 1997 to 2003 use a 5x135mm pattern.
Learning these differences helps in choosing the right wheels. Here are the detailed specs for these model ranges:
| Model Year | Lug Pattern | Lug Nut Size | Center Bore | Recommended Torque |
|---|---|---|---|---|
| 2004-Present | 6x135mm | 14mm x 2.0 | 87.1mm | 150 ft-lbs |
| 1997-2003 | 5x135mm | 12mm x 1.75 | 87.1mm | 100 ft-lbs |
Comparison of 2004-Present vs. 1997-2003 Models
The two Ford F150 periods show different engineering styles. Newer models’ lug setups offer better load capacity and stability.
This improves performance. Meanwhile, the older models are reliable but not as robust. Make sure to check the standard specs by model year for the best fit and safety.
How To Check Your Ford F150’s Lug Pattern?
Figuring out your Ford F150’s lug pattern needs exact measuring for a perfect fit. Getting the measurements right is key for choosing wheels and ensuring safety.
You’ll need specific tools and a clear procedure to check your lug pattern accurately.
Tools Required For Measuring
- Lug nut wrench
- Measuring tape
- Jack
- Bolt pattern gauge or calipers (optional for precision)
Step-by-Step Guide To Measure Your Lug Pattern
- Park your vehicle on a level ground and set the parking brake.
- Loosen the lug nuts but don’t take them off completely.
- Use a jack to lift the vehicle a little and take off the wheel.
- Measure the bolt circle’s diameter; it’s typically about 135mm for F150s. Do this by measuring from the center of one lug hole to the center of the lug hole directly across.
- Check how many lug studs there are. Most newer models have six.
Knowing The Ford F150 Bolt Pattern
The Ford F150’s bolt pattern is key to its maintenance and safety. It shows how wheels connect to the hub.
This truck uses a six-bolt circle with a 135mm diameter. Knowing this helps you pick the right wheels.
Defining The Bolt Pattern
This pattern has two important parts: the bolt count and the diameter across opposite bolts.
For the Ford F150, six bolts 135mm apart mean a strong wheel-hub link. Correct measurements make sure your wheels fit perfectly.
The Significance of Bolt Patterns For Wheel Installation
Choosing the right bolt pattern is crucial. Wrong patterns can cause misalignment and more tire wear. The correct Ford F150 pattern means smooth rides on all surfaces.
How To Determine The Proper Lug Nut Size
It’s vital to know the right ford f150 lug nut size for your truck. This info changes with the F150 model year. We’ve listed lug nut sizes for different years below.
Specifications by Model Year
| Model Year | Lug Nut Size | Torque Specifications (ft-lbs) |
|---|---|---|
| 2004-Present | 14mm x 2.0 | 150 |
| 1997-2003 | 12mm x 1.75 | 100 |
The Importance of Torque For Lug Nut Safety
Torque is key for keeping your wheels safe. For the ford f150 lug nut size, the right torque ensures lug nuts are not too tight or loose.
Use a torque wrench with the right settings. This avoids wheels falling off or damage to wheel studs. Always tighten your lug nuts in a star pattern for the best outcome.
Wheel Offset and Its Importance in Fitment
Compromise wheel offset is key for proper F150 wheel fit. It’s the gap between the wheel’s mounting surface and its center.
This gap is vital for how the wheel sits and how your truck handles. Picking the correct offset is crucial for performance and avoiding problems.
What is Wheel Offset?
Wheel offset falls into three types: positive, negative, and zero. Positive offset means the mounting surface is towards the wheel’s front.
Negative offset is the reverse. With zero offset, the surface aligns with the wheel’s center.
Each type impacts how your wheel aligns and fits, especially on F150 trucks. Choosing the correct offset ensures enough clearance and good handling.
Recommended Offset Measurements For F150s
For Ford F150 trucks, offsets typically range from +30mm to +44mm. This varies by model year and design. Here’s a quick guide to the recommended offsets:
| Model Year | Standard Offset (mm) | Notes |
|---|---|---|
| 2004-2008 | +30 to +40 | Balanced for standard and slightly wider tires. |
| 2009-2014 | +35 to +44 | Improved fender clearance for larger wheels. |
| 2015-Present | +30 to +42 | Works with different aftermarket wheels. |
By following these F150 fitment tips, you get more than a nice look. It also helps your truck last longer and drive better.
Choosing the right wheel offset makes your ride more enjoyable and avoids car troubles.
Common Fitment Issues with F150 Wheels
When you’re upgrading or replacing your Ford F150 wheels, knowing the common fitment problems helps a lot. Issues like not matching lug patterns can cause big headaches.
They not only affect your ride but your safety too. It’s key to know these problems for the best choice for your wheels.
Misalignment Problems
Lug pattern mismatches are a top reason wheels don’t fit right. If the lug holes and bolt pattern don’t align well, you could face:
- Uneven tire wear
- Compromised vehicle handling
- Increased stress on wheel bearings
Make sure your new wheels are a perfect fit for your truck’s specific year to avoid these issues.
Vibration Issues Due To Incorrect Lug Patterns
Wrong lug patterns or not tightening lug nuts correctly can make your ride shaky. You might notice:
- Shaking at high speeds
- Buttress wear on tires
- Difficulty steering
Aligning the lug pattern correctly and checking the torque settings after fitting can reduce vibration problems.
Choosing The Right Wheels For Your Ford F150
When picking wheels for your Ford F150, it’s key to know the difference between OEM and aftermarket.
Both types have their own advantages that fit different needs and tastes. Knowing this will make your drive better and boost your truck’s performance.

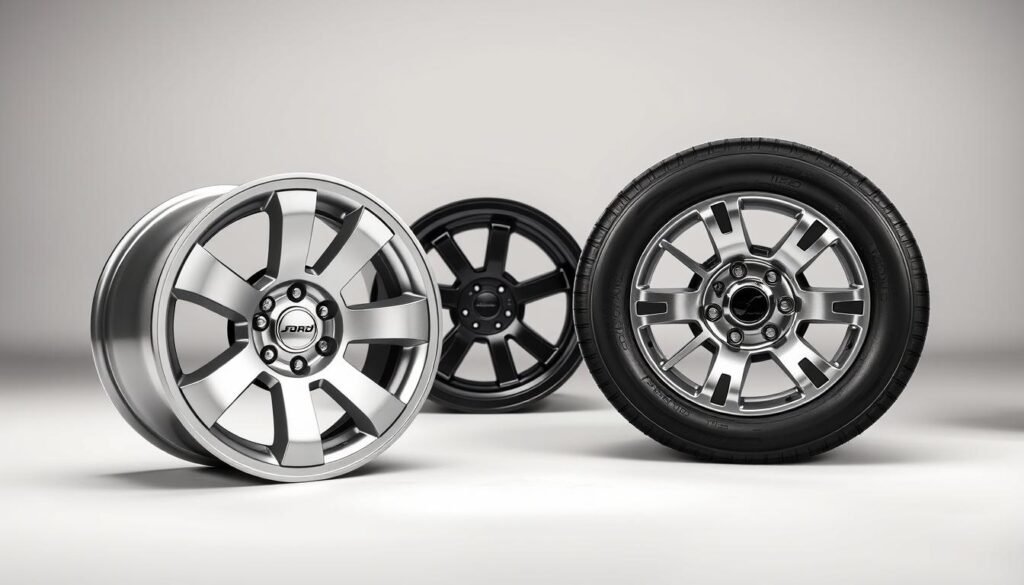

OEM vs. Aftermarket Wheel Options
OEM wheels are made just for specific Ford F150 models. They guarantee a perfect fit and go through tests for quality and strength. This means they work best with your truck.
In contrast, aftermarket wheels offer lots of styles and finishes, letting you personalize your truck’s look.
Make sure they have the right 6x135mm lug pattern and meet the technical standards for safety and good performance.
Compatibility with Other Ford Models
The Ford F150’s 6x135mm lug pattern is also found in other Ford models. This makes it easier to check out wheels not only meant for the F150.
Looking at wheels from other models could help you discover unique or better-performing wheels that suit what you want.
How to Avoid Common Lug Pattern Mistakes
Choosing the right wheels for your Ford F150 is key. Many owners mess up, leading to issues with fit and safety. Knowing these mistakes saves you time, cash, and stress.
Highlighting Frequent Missteps by Owners
People often forget to check the lug patterns before buying wheels. They miss details like bolt patterns and center bore specs, leading to a bad fit. Realizing each vehicle model varies helps make a smart choice.
Best Practices For Wheel Selection
To pick wheels the right way, follow these tips:
- Always verify the compatibility of the wheels with your specific Ford F150 model.
- Consult installation guides and manufacturer specifications thoroughly before making a purchase.
- Consider how your wheel selections affect vehicle handling and performance.
- Cross-reference bolt patterns and offset measurements to avoid any misalignment.
These steps boost safety and driving joy. They help you feel sure about your Ford F150.
Upgrading Your Wheels: What You Need To Know?
Upgrading your Ford F150’s wheels can improve how your truck performs and its safety. If you want better handling or to make your truck look cooler, the right wheels can help a lot.
It’s important to know why upgrading your wheels is a good idea to get the most out of your truck.
Reasons For Wheel Upgrades
There are many reasons to think about getting new wheels. First off, lighter wheels can make your truck speed up and stop faster. This makes driving more fun.
Also, newer wheel styles can help your tires grip the road better. This is great for driving off-road.
A new set of wheels can also make your truck look awesome. Plus, they can help your brakes stay cooler and work better during tough drives.
Impact on Vehicle Performance and Safety
New wheels do more than just look good. They can also make your truck ride smoother and more stable. Choosing the right lug patterns and offsets is very important.
If you don’t, your truck might not handle well, which isn’t safe. Making sure your new wheels fit your Ford F150 perfectly is important to avoid problems.
So, it’s a smart move to do your homework and maybe talk to some experts before upgrading your wheels.
Professional Help vs. DIY Installation
When you think about putting new wheels on your Ford F150, choosing between getting professional help or doing it yourself is big.
A DIY approach might save money but could be risky without the right experience. The right alignment, how tight the bolts should be, and making sure everything fits right usually need a pro.
When To Consult A Professional
If you’re not sure how to properly install wheels, or don’t have the tools, get a pro. Also, if your ride feels shaky or the lug nuts won’t stay tight, it’s time to call for expert help.
Professionals make sure your wheels meet all the right standards for safety and performance.
Benefits of Proper Installation
Getting a professional to install your wheels comes with lots of benefits:
- It makes sure your wheels fit right and your car drives smoothly.
- It avoids the risks of making mistakes if you tried to do it yourself.
- It ensures the bolts are just the right tightness for safety.
- It gives you comfort knowing your wheels are on the right way.
Conclusion
Knowing the Ford F150 lug pattern is key for keeping your truck running well and safe. Most models use a 6x135mm pattern.
This helps you pick the right wheels. It not only makes your truck drive better but also look nicer. This guide is a great start for understanding wheel fitment.
It covers checking details and making sure everything is tightened right. This knowledge lets you choose wheels wisely, focusing on both how they fit and safety.
With this info, you’ll be set to deal with wheel fitment challenges. You’ll make sure your Ford F150 is both performing great and looking good.
FAQs
Q: What is the bolt pattern for the Ford F150?
A: Most Ford F150 models from 2004 and later use a 6x135mm bolt pattern. Models made between 1997 and 2003 have a 5x135mm pattern.
Q: How do I measure the lug pattern on my Ford F150?
A: First, find the diameter by measuring from the center of one lug hole directly across to the other. Make sure to count the lugs too.
Q: What is the lug nut size for a 2004 Ford F150?
A: The lug nut size for Ford F150 models from 2004 onwards is 14mm x 2.0.
Q: Why is the correct torque important for lug nuts?
A: The right torque keeps wheels secure and avoids wear. For models from 2004 to now, 150 ft-lbs is recommended.
Q: What is the typical wheel offset for Ford F150 trucks?
A: Wheel offset for Ford F150 trucks is usually between +30mm and +44mm, depending on the model.
Q: What common fitment issues should I watch out for?
A: Watch for misalignment and vibrations. These problems can come from wrong lug patterns or lug nuts that aren’t seated right.
Q: Should I purchase OEM or aftermarket wheels for my Ford F150?
A: Either choice works, but OEM wheels guarantee a perfect fit and optimal performance for your vehicle.
Q: What mistakes do Ford F150 owners commonly make regarding lug patterns?
A: Many owners don’t check the lug patterns and specifics like offset and center bore closely. This oversight can cause wheel fitment issues.
Q: When is it advisable to consult a professional for wheel installation?
A: If you’re not sure about wheel fitment, it’s wise to talk to a professional. They’ll make sure everything meets safety and specification standards.
